These following images were taken by using 2-dimensional delay line detector (Roentdek DLD-40).

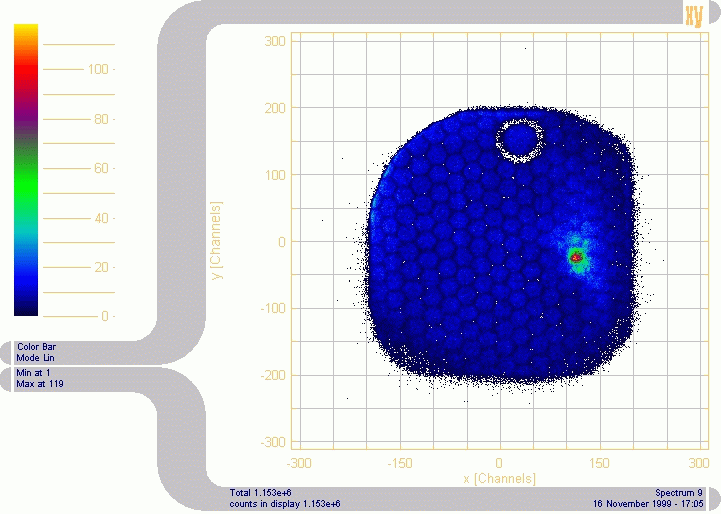

RoentDek DLD-40 (2-D detector image) No.1
Am-241 alpha source with Ag foil (5 micro m)
threshold : 50mV
applied voltages
*MCP front : -2100V
*MCP back : 0V
*Anode Holder : 100V
*Reference wires : 350V
*Collecting (Signal) wires : 400V
rate : about 200cps

Notice : The image of hexagonal shape is a mesh mounted on front of the detector.

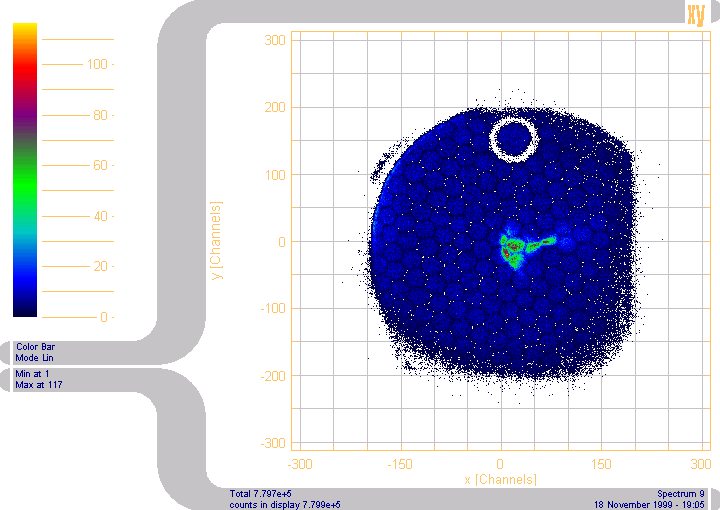

RoentDek DLD-40 (2-D detector image) No.2
with Am-241 alpha source.
threshold : 75mV
applied voltages
*MCP front : -2100V
*MCP back : 0V
*Anode Holder : 100V
*Reference wires : 350V
*Collecting (Signal) wires : 400V

Notice : The hexagonal shape is a mesh mounted on front of the detector.

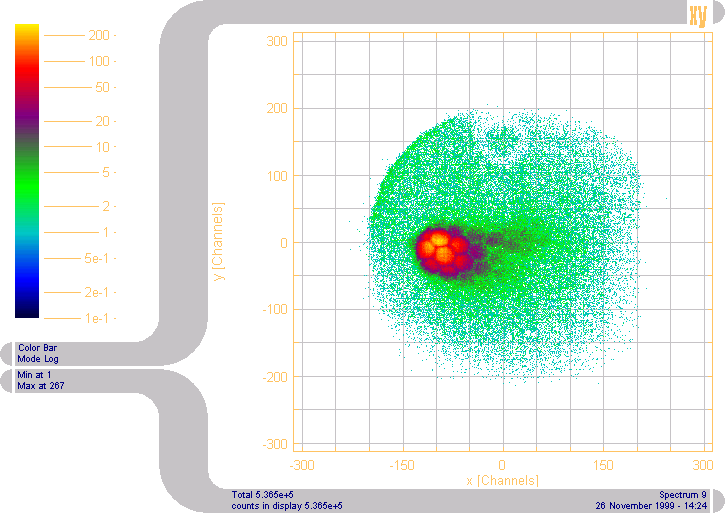

A Strange Spot!

threshold : 75mV
applied voltages
*MCP front : -2100V
*MCP back : 0V
*Anode Holder : 100V
*Reference wires : 350V
*Collecting (Signal) wires : 400V
